  • FOB Price : 20
  • Min.Order Quantity : 100PCS
  • Supply Ability : 1000 TONS PER MONTH
  • Loading Port : tianjin
  • Payment Terms : TT, L/C
Product quality protection
On-time shipment protection

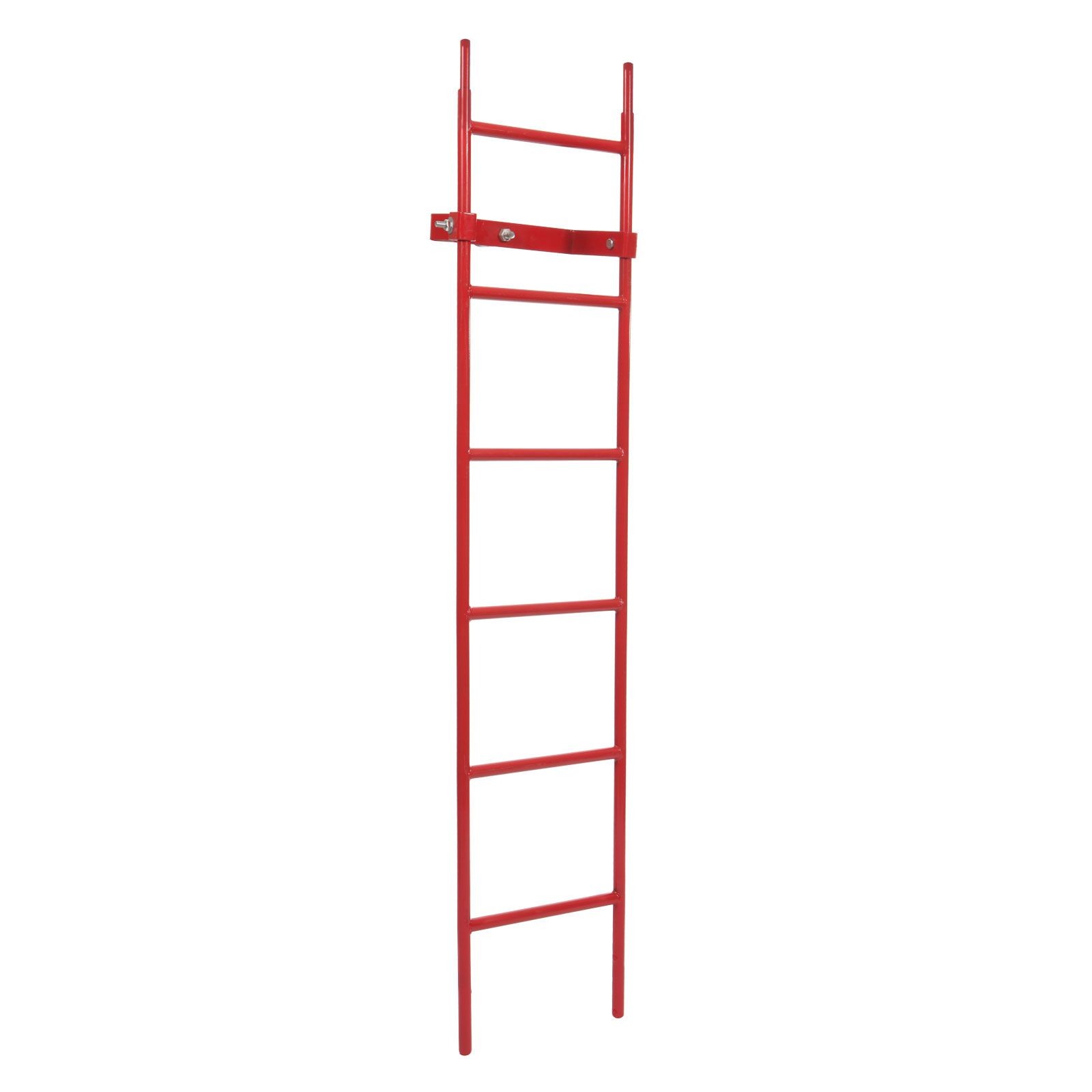

6ft access ladder and bracket for American frame scaffolding



Specificaton

5'x6'4"  / 3'X6'4''/ 5'x5' / 5'x4' / 5'x3' Customised size is available

Material

Q345 / Q235

Surface

Powder  Coated

Main   Tube

1.69"x0.095"/1.26''X0.079''

Frame   locks

Snap on   lock, flip lock, drop lock, speed lock, vanguard lock (V lock), bil-jax lock   (C lock), Canadian lock

Payment   Terms

TT or LC

Delivery   Terms

FOB/CIF/DDP

Package

By   pallet

Delivery   Time

25-45   days

Components

walk thru   frame, cross brace, coupling pins, aluminum plank, osha metal deck, side   bracket, screw jack, U-head jack, caster wheels, debris netting.


Model No.

Description

Dimension

weight

Lb

Kg

WTF-01-364

3'W   X 6'4''H Walk Thru Frame

914*1930mm

40.00

18.10

WTF-01-464

4'W   X 6'4''H Walk Thru Frame

1219*1930mm

43.00

19.50

WTF-01-564

5'W   X 6'4''H Walk Thru Frame

1524*1930mm

46.00

20.80

WTF-01-45

4'W X 5'H   Walk Thru Frame

1219*1524mm

38.10

17.30

WTF-01-457

4'W   X 5'7''H Walk Thru Frame

1219*1700mm

41.20

18.70






MF-02-53

5'W   X 3'H  Mason Frame

1524*914mm

27.00

12.20

MF-02-54

5'W   X 4'H  Mason Frame

1524*1219mm

34.00

15.40

MF-02-55

5'W   X 5'H  Mason Frame

1524*1524mm

37.00

16.80

MF-02-564

5'W   X 6'4''H  Mason Frame

1524*1930mm

43.00

19.50

MF-02-567

5'W   X 6'7''H  Mason Frame

1524*2007mm

48.00

21.80






NF-03-264

2'W   X 6'4''H  Narrow Frame

610*1930mm

33.00

14.90

NF-03-364

3'W   X 6'4''H Narrow Frame

914*1930mm

40.00

18.10

NF-03-464

4'W   X 6'4''H Narrow Frame

1219*1930mm

44.00

19.90
